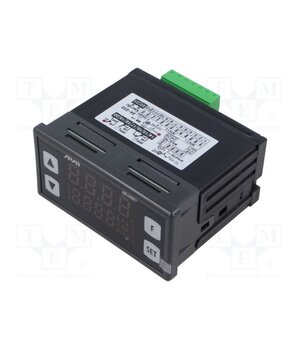

AR653.B/P/P/P/WU Automation module: dual channel regulator; relay; OUT 2: relay

• Supply voltage — 22V…350V
• Operating temperature — 0°C…50°C
• Supply voltage AC — 18V AC…265V AC
• Supply voltage DC — 22V DC…350V DC
• Kind of output 3 — relay
• Controlled parameter — pressure
• Kind of temperature sensor — thermocouple J
• Kind of output 2 — relay
• Mounting — for DIN rail mounting
• Kind of temperature sensor — thermocouple K
• Controlled parameter — temperature
• —
• —
• The programming method — foil keypad
• —
• —
• Kind of temperature sensor — thermocouple T
• IP rating — IP20
• Kind of temperature sensor — Pt1000
• Body dimensions — 96x48x79mm
• Kind of temperature sensor — Pt100
• Type of automation module — dual channel regulator
• Kind of temperature sensor — Ni100
• Type of module — dual channel regulator
• Manufacturer — APAR
• Kind of temperature sensor — thermocouple R
• Kind of temperature sensor — thermocouple E
• Kind of temperature sensor — thermocouple N
• Measurement accuracy — 0.1%
• Kind of temperature sensor — thermocouple B
• Controlled parameter — humidity
• Kind of output 1 — relay
• Controlled parameter — speed
• Kind of temperature sensor — Pt500
• Kind of temperature sensor — thermocouple S
