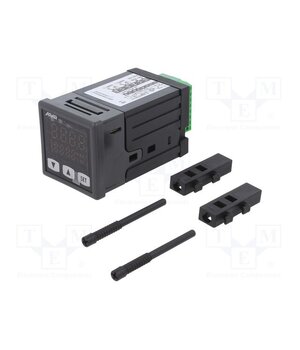

AR602.B/P/P/WA Automation module: regulator; temperature; -999÷9990; SPST-NO

• Supply voltage AC — 18V AC…265V AC
• Operating temperature — 0°C…50°C
• Supply voltage DC — 22V DC…350V DC
• Kind of output 3 — 0/4...20mA
• Controlled parameter range — -999...9990
• Type of automation module — regulator
• Kind of temperature sensor — thermocouple J
• —
• Kind of output 1 — SPST-NO
• Mounting — on panel
• Mounting hole diameter — 46x46mm
• —
• Kind of temperature sensor — thermocouple K
• Controlled parameter — temperature
• —
• Additional functions — error messages on the LED display
• —
• Kind of output 2 — SPST-NO
• —
• —
• —
• The programming method — foil keypad
• Additional functions — sensors supply voltage: 24V DC / 30mA
• —
• Kind of input 1 — universal
• Kind of temperature sensor — thermocouple T
• —
• Additional functions — temperature compensation of thermocouple cold ends
• —
• —
• Kind of input 1 — 0...2,5kΩ
• —
• Kind of temperature sensor — Pt100
• Kind of input 1 — 0...60mV
• Kind of temperature sensor — Ni100
• Manufacturer — APAR
• Kind of temperature sensor — thermocouple R
• Kind of display used — LED x2
• Kind of input 1 — 0/4...20mA
• Additional functions — LED status indicator
• Display parameters — 4-digit
• Additional functions — display brightness adjustment
• Kind of input 1 — 0...10V
• —
• —
• —
• Kind of temperature sensor — thermocouple B
• Type of module — regulator
• Body dimensions — 48x48x79mm
• —
• Kind of temperature sensor — thermocouple S
