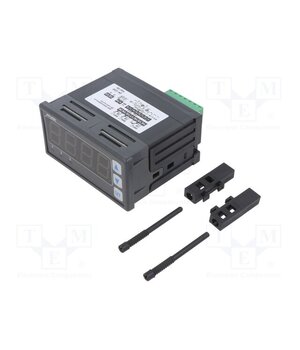

AR650/P/P/P/WU Automation module: regulator; temperature; -1999÷9999; SPDT

• Supply voltage — 20V…350V
• Operating temperature — 0°C…50°C
• Supply voltage AC — 18V AC…265V AC
• Supply voltage DC — 20V DC…350V DC
• Additional functions — output 2 - operational output;
• Kind of output 1 — SPDT
• Additional functions — output 1 - operational output
• —
• Type of automation module — regulator
• Kind of temperature sensor — thermocouple J
• Mounting — on panel
• Kind of input 1 — 4...20mA
• —
• Kind of temperature sensor — thermocouple K
• Controlled parameter — temperature
• Controlled parameter range — -1999...9999
• —
• Additional functions — error messages on the LED display
• —
• Kind of output 2 — SPST-NO
• —
• Mounting hole diameter — 92x46mm
• —
• The programming method — foil keypad
• Kind of output 3 — SPST-NO
• —
• Kind of input 1 — universal
• Kind of temperature sensor — thermocouple T
• —
• Kind of temperature sensor — Pt1000
• Body dimensions — 96x48x79mm
• Additional functions — temperature compensation of thermocouple cold ends
• —
• Kind of input 1 — 0...20mA
• Kind of input 1 — 0...2,5kΩ
• Kind of display used — LED
• —
• Kind of temperature sensor — Pt100
• Kind of input 1 — 0...60mV
• Kind of temperature sensor — Ni100
• —
• Manufacturer — APAR
• Kind of temperature sensor — thermocouple R
• Kind of input 1 — 0...10V DC
• Additional functions — LED status indicator
• Kind of temperature sensor — thermocouple E
• Display parameters — 4-digit
• Kind of temperature sensor — thermocouple N
• —
• —
• Kind of temperature sensor — thermocouple B
• Type of module — regulator
• —
• Kind of temperature sensor — Pt500
• —
• Kind of temperature sensor — thermocouple S
