Oscilloscope FNIRSI 1014D 100 MHz
Code ATOSF1014D- Manufacturer FNIRSI
- Weight 1550.00g
E-shop price:
155,00 €
191,00 €
| Amount: | 2+ | 3+ |
| Price: | 151,90 | 151,12 |
| 185,27 | 183,36 |
Minimum order: 1 Repeatability : 1
Amount
| Item location: | ||
|---|---|---|
| Central warehouse in Kaunas | Item is not available (0) | |
| Shop in Vilnius | Item available (1) | |
| Shop in Kaunas | Item available (1) | |
Description
Key advantages

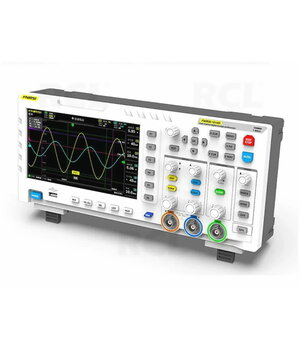

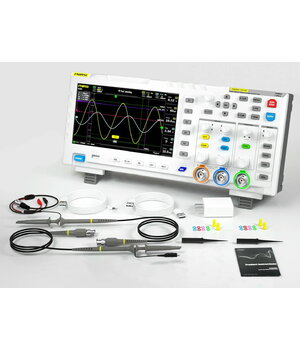

The FNIRSI 1014D is a dual-channel digital oscilloscope with an integrated DDS function generator. Compared with other oscilloscopes in a similar class, the instrument stands out by combining two independent measurement channels, up to 100 MHz analogue bandwidth, up to 1 GSa/s real-time sampling rate and an integrated 12-waveform signal generator. The large 7-inch colour display and dedicated controls for the main functions are suitable for waveform observation, electronic circuit diagnostics, repair, adjustment and educational laboratory applications.
Functions
- Measurement and display of two independent input signals
- Simultaneous comparison of two waveforms
- Automatic measurement of input signal parameters
- Automatic waveform adjustment
- Automatic measurement of 12 signal parameters
- Cursor measurements of voltage and time
- Mathematical operations on measurement channel signals
- FFT spectrum analysis
- X–Y display mode
- Automatic, normal and single trigger modes
- Rising-edge and falling-edge triggering
- Adjustable trigger level
- Waveform storage and recall
- Screenshot storage
- Integrated 1 GB data storage
- Integrated DDS function generator
- Generation of 12 waveform types
- Adjustable signal frequency, amplitude and duty cycle
- Integrated 1 kHz calibration signal output
- Adjustable display brightness
- Integrated overvoltage protection

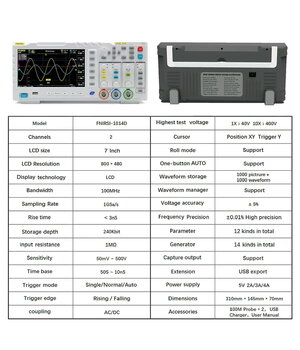

Technical specifications
- Instrument type: digital storage oscilloscope with DDS function generator
- Number of oscilloscope channels: 2
- Analogue bandwidth: up to 100 MHz
- Real-time sampling rate: up to 1 GSa/s
- Memory depth: 240 K points
- Vertical sensitivity: 50 mV/div to 500 V/div when using a 10× probe
- Time-base range: 50 s/div to 10 ns/div
- Input impedance: 1 MΩ
- Input capacitance: approximately 25 pF
- Input connectors: BNC
- Input coupling: AC / DC
- Maximum permitted input voltage: 400 V
- Trigger modes: Auto / Normal / Single
- Trigger edge: rising / falling
- Number of automatically measured parameters: 12
- Spectrum analysis: FFT
- Display modes: Y–T / X–Y
- Signal generator type: DDS
- Number of generated waveform types: 12
- Sine-wave frequency: up to 10 MHz
- Other waveform frequencies: up to 2 MHz
- Generator output amplitude: up to 2.5 V
- Generator output connector: BNC
- Calibration signal frequency: 1 kHz
- Display: 7-inch colour TFT LCD
- Display resolution: 800 × 480 pixels
- Internal storage capacity: 1 GB
- Data interface: USB
- Supply voltage: 5 V DC
- Maximum current consumption: 2 A
- Dimensions: approximately 310 × 145 × 75 mm
- Weight: approximately 1.5 kg
