Wire Tracker UT682D UNI-T

Code ATS682D
  • Manufacturer UNI-T
  • Weight 415.00g

E-shop price: 22,90

Amount: 3+ 5+
Price: 21,76 20,24
Minimum order: 1 Repeatability : 1

Amount
Item location:
Central warehouse in Kaunas Item is not available (0)
Shop in Vilnius Item is not available (0)
Shop in Kaunas Item is not available (0)

Item description

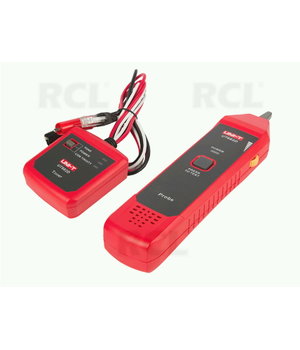

UT682 wire tracker consists of a transmitter and a receiver, it is able to track ethernet/telephone/power cables without opening their insulation.
UT682 can troubleshoot ethernet cables and is a recommended tool for debugging communication cables and audio/video cables.

  • Wire tracking features Wire types Telephone line\twisted-pair\electric wire
  • Telephone lines tracking distance ≥3000m
  • Polarity indication for telelphone lines DCV function, range: ±(5V~52V)
  • Telephone lines and LAN cables distinction Jacks distinction
  • Transmitter output voltage 8V DC with a new battery
  • Transmitter power supply 9V battery
  • Receiver power supply 9V battery
  • Max receiver standby current ~10mA
  • Max receiver operating current <40mA (AC, RMS)
  • Transmitter input voltage protection   60V DC
  • Operating temperature: 0~40℃; Storage temperature: -10~50℃
  • Operating humidity: 20~75%RH; Storage humidity: 10~90%RH; Altitude: ≤2000m
  • Transmitter-74mm x 68mm x 28mm, receiver-208mm x 47mm x 33mm
