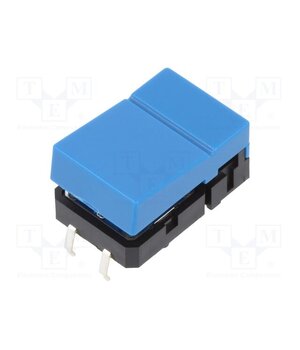

B3J1400 Switch: keypad; Pos: 2; SPST-NO; 0.05A/24VDC; blue; none; THT; 1.27N

• Contacts pitch — 12.5mm…5m
• Operating temperature — -25°C…70°C
• Max. contact resistance — 100mΩ
• Mechanical durability — 3Mcysles
• Key stroke — 0.0003
• Operating Force — 1.27N
• Min. insulation resistance — 100MΩ
• Illumination — none
• Leads — straight
• Terminal pitch — 5x12.5mm
• —
• Leads — for PCB
• Body dimensions — 18x12x10.3mm
• Contact plating — silver plated
• —
• Button shape — rectangular
• Switching method — OFF-(ON)
• —
• Actuator colour — blue
• —
• —
• —
• Kind of package — box
• —
• —
• —
• —
• Contacts configuration — SPST-NO
• Stable positions number — 1
• Switch of type — keypad
• Manufacturer — OMRON
• —
• Mounting — through-hole technology
