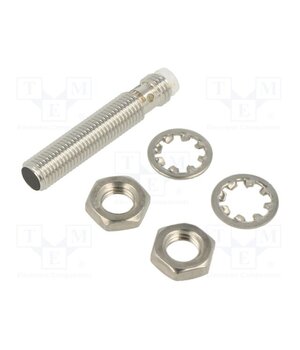

BES 516-377-G-E5-C-S49 Sensor: inductive; OUT: PNP / NC; 0÷2mm; 10÷30VDC; M8; IP68; 5kHz

• Number of pins — 3
• Supply voltage — 10V…30V
• Operating temperature — -40°C…85°C
• Supply voltage AC — 10V AC…30V AC
• Supply voltage DC — 10V DC…30V DC
• Overall length — 45mm
• Switching frequency max — 5kHz
• Body material — stainless steel
• Connection — M8 male
• IP rating — IP68
• Type of sensor — inductive
• —
• —
• —
• Range — 0...2mm
• Manufacturer — BALLUFF
• —
• Range — 0...2mm
• —
• Output configuration — PNP / NC
• Switch housing — M8
• —
