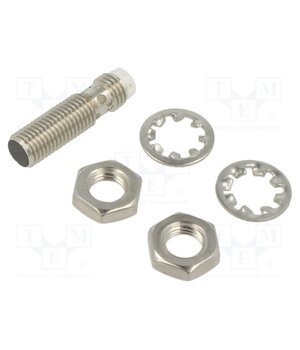

BES M08EC-PSC20B-S49G Sensor: inductive; OUT: PNP / NO; 0÷2mm; 10÷30VDC; M8; IP68; 5kHz

• Number of pins — 3
• Operating temperature — -40°C…85°C
• Supply voltage AC — 10V AC…30V AC
• Supply voltage DC — 10V DC…30V DC
• Overall length — 30mm
• Switching frequency max — 5kHz
• Body material — stainless steel
• Connection — M8 male
• IP rating — IP68
• Type of sensor — inductive
• —
• —
• —
• Range — 0...2mm
• Manufacturer — BALLUFF
• Range — 0...2mm
• —
• Output configuration — PNP / NO
• Switch housing — M8
• —
• —
