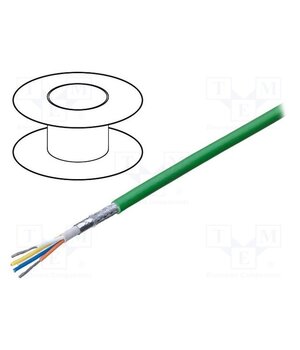

70007E.01305 Wire; SF/UTP; 4x22AWG; industrial Ethernet,PROFINET; Cat 5e; Cu

• Operating temperature — -40°C…80°C
• Number of cores — 4
• Package contents — 305m
• —
• Kind of cable — SF/UTP
• Kind of core — Cu
• Manufacturer — BELDEN
• —
• Cable external diameter — 6.5mm
• Core structure — stranded
• —
• —
• —
• Insulation colour — green
• —
• —
• Cable application — PROFINET
• Cable application — industrial Ethernet
• Shield structure — Al foil
• Resistance to — mechanical stesses
• —
• Core diameter AWG — 22AWG
• Conform to the norm — UL 2464
• Kind of wire — SF/UTP
• Shield structure — shielded twofold
• Shield structure — tinned copper braid
• —
• —
• —
• Resistance to — most of solvents
• Wire insulation material — PVC
• Resistance to — most of oils
• Kind of core — tinned
