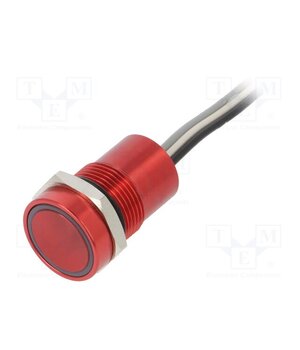

MC16MORGR Switch: capacitive; Pos: 2; SPST-NO; 0.01A/12VDC; IP68; OFF-(ON)

• Operating temperature — -25°C…55°C
• Max. contact resistance — 20mΩ
• Illumination voltage — 12V
• Lead length — 300mm
• —
• Backlight colour — green/red
• Manufacturer — BULGIN
• Leads — cables
• Actuator colour — red
• DC contacts rating @R — 0.01A / 12V DC
• IP rating — IP68
• Switching method — OFF-(ON)
• —
• Mounting hole diameter — Ø16mm
• Illumination — LED
• Contacts configuration — SPST-NO
• Stable positions number — 1
• —
• —
• Body colour — red
• Switch of type — capacitive
• Panel thickness — max. 2mm
• —
• —
