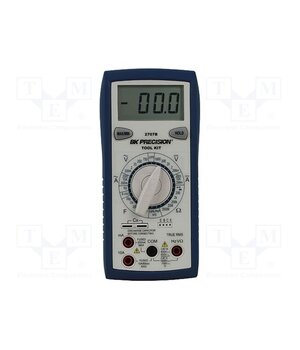

BK2707B Digital multimeter; LCD; 3,5 digit (1999); 2,5x/s; True RMS

• Operating temperature — 0°C…50°C
• Capacitance measuring range — 20μF
• AC current measuring range — 10A
• DC current measuring range — 10A
• DC voltage measuring range — 1kV DC
• AC voltage measuring range — 750V AC
• Resistance measuring range — 2GΩ
• —
• —
• —
• —
• —
• —
• —
• —
• Measurement — capacitance
• —
• —
• Measurement — frequency
• Conform to the norm — CAT III 600V
• Measurement — DC current
• Standard equipment — test leads
• —
• —
• Measurement — AC voltage
• —
• —
• True effective value measurement — True RMS
• Standard equipment — fuse
• —
• —
• —
• Frequency measuring range — 20MHz
• —
• Kind of display used — LCD
• Measuring instrument features — low battery indicator
• Standard equipment — user's manual
• Sampling — 2,5x/s
• Dimensions (W x H x D) — 78x165x42.5mm
• Measurement — resistance
• —
• —
• —
• —
• Manufacturer — B&K PRECISION
• —
• —
• Measuring instrument features — socket for testing transistors' gain (hFE) parameter
• —
• Measuring instrument features — manual ranging
• —
• —
• Type of meter — digital multimeter
• —
• —
• —
• Display parameters — 3,5 digit (1999)
• Conform to the norm — EN 61010
• Frequency measuring range — 200kHz
• Continuity test — <100Ω
• —
• —
• —
• Standard equipment — thermocouple
• Continuity test — acoustic indication
• Frequency measuring range — 2MHz
• Measurement — AC current
• —
• —
• —
• Frequency measuring range — 2kHz
• —
• Measurement — DC voltage
• —
• Measurement — continuity
• —
• —
• —
• Frequency measuring range — 20kHz
