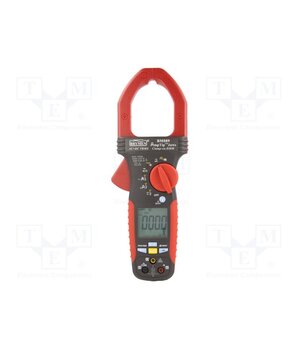

BM089 Meter: multifunction; digital,AC/DC pincers type; Øcable: 51mm

• Temperature measuring range — -40°C…400°C
• Capacitance measuring range — 2.5mF
• DC current measuring range — 1kA
• AC current measuring range — 1kA
• DC voltage measuring range — 1kV DC
• AC voltage measuring range — 1kV AC
• Resistance measuring range — 60kΩ
• Max. diameter of measured cable — 51mm
• —
• Standard equipment — case
• Measurement — temperature
• Standard equipment — crocodile clips
• —
• —
• Measurement — capacitance
• Measurement — DC current
• Standard equipment — test leads
• —
• —
• Measurement — AC voltage
• —
• Kind of display used — LCD
• Measurement — resistance
• —
• Measuring instrument features — MIN/MAX/MEAN/REL function
• —
• Manufacturer — BRYMEN
• —
• —
• —
• Standard equipment — K-type temperature probe
• Measuring instrument features — CREST: logging of extreme values MAX
• —
• —
• Test — diodes
• Measuring instrument features — HOLD function
• —
• —
• —
• —
• Measurement — phase sequence
• Kind of meter — pincers type
• Measuring instrument features — low-pass filter for measuring drive parameters
• Kind of meter — digital
• Type of meter — multifunction
• —
• Dimensions — 258x94x44mm
• Continuity test — acoustic indication
• —
• Display parameters — (6000)
• Measurement — AC current
• —
• —
• Measurement — DC voltage
• —
• —
• —
• —
• —
