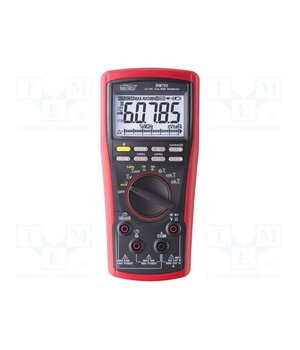

BM785 Digital multimeter; LCD; 4-5/6 digits (60000); 5x/s; True RMS

• Capacitance measuring range — 10mF
• DC current measuring range — 10A
• AC current measuring range — 10A
• DC voltage measuring range — 1kV DC
• AC voltage measuring range — 1kV AC
• Resistance measuring range — 60MΩ
• —
• —
• —
• Sampling — 5x/s
• —
• —
• Measurement — capacitance
• —
• —
• —
• —
• Measurement — frequency
• Display parameters — 4-5/6 digits (60000)
• Measurement — DC current
• Standard equipment — test leads
• Measuring instrument features — indicates incorrect connection of test leads
• —
• —
• —
• Measurement — AC voltage
• —
• —
• —
• —
• —
• True effective value measurement — True RMS
• Measurement — duty cycle
• Kind of display used — LCD
• Measuring instrument features — MIN/MAX/AVG function
• —
• Measurement — resistance
• Continuity test — 100Ω...420Ω
• Manufacturer — BRYMEN
• —
• Measuring instrument features — measures digital logic level frequencies and duty cycles
• Frequency measuring range — 5...1MHz
• Dimensions (W x H x D) — 193x89x51mm
• —
• —
• —
• —
• —
• —
• Measuring instrument features — HOLD function
• —
• Measuring instrument features — contactless voltage detector
• —
• Type of meter — digital multimeter
• —
• —
• Conform to the norm — CAT IV 600V
• Measuring instrument features — automatic power-off
• Conform to the norm — EN 61010
• Measuring instrument features — REL function
• —
• —
• —
• —
• —
• —
• Continuity test — acoustic indication
• —
• —
• —
• Measurement — AC current
• —
• Conform to the norm — CAT III 1000V
• —
• —
• —
• —
• Measurement — DC voltage
• Measuring instrument features — autoranging
• Measurement — continuity
• —
• —
• —
• —
• —
