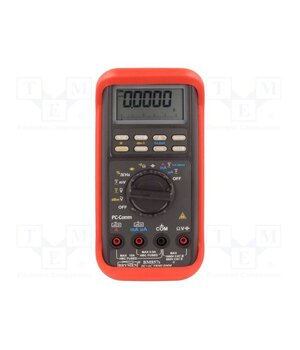

BM857S-WB Digital multimeter; RS232; LCD; (50000); Bargraph: 42segm.60x/s

• Capacitance measuring range — 9.999mF
• DC current measuring range — 20A…30A
• AC current measuring range — 20A…30A
• DC voltage measuring range — 1kV DC
• AC voltage measuring range — 1kV AC
• Resistance measuring range — 50MΩ
• —
• —
• —
• —
• Sampling — 5x/s
• —
• Measurement — capacitance
• —
• —
• Measuring instrument features — overload protection
• —
• —
• Measurement — frequency
• —
• Measurement — DC current
• Standard equipment — test leads
• Measuring instrument features — indicates incorrect connection of test leads
• —
• —
• Measurement — AC voltage
• —
• —
• —
• —
• —
• —
• True effective value measurement — True RMS
• —
• —
• —
• —
• —
• —
• —
• Measurement — duty cycle
• Measuring instrument features — logging of MAX, MIN, MAX-MIN values
• Kind of display used — LCD
• —
• Measuring instrument features — mains filter 50/60Hz
• Measurement — resistance
• Measuring instrument features — auto and manual ranging
• Manufacturer — BRYMEN
• Measuring instrument features — MIN/MAX/REL function
• Measuring instrument features — test of 4-20mA current loops in control systems
• Measuring instrument features — impact resistant holster
• —
• —
• Continuity test — 20Ω...200Ω
• Display parameters — (50000)
• Interface — RS232
• —
• Measuring instrument features — HOLD function
• —
• Type of meter — digital multimeter
• —
• —
• —
• Conform to the norm — CAT IV 600V
• —
• Measuring instrument features — automatic power-off
• Frequency measuring range — 10...200kHz
• Conform to the norm — EN 61010
• —
• —
• Standard equipment — holster
• —
• —
• —
• —
• Continuity test — acoustic indication
• —
• —
• Measurement — AC current
• —
• Frequency measuring range — 5Hz...2MHz
• —
• Conform to the norm — CAT III 1000V
• —
• Measurement — DC voltage
• —
• Dimensions (W x H x D) — 97x198x55mm
• —
• —
• —
• —
• —
• Measuring instrument features — CREST: logging of extreme values MAX, MIN and MAX-MIN of voltage and current impulses > 0,8ms
• —
