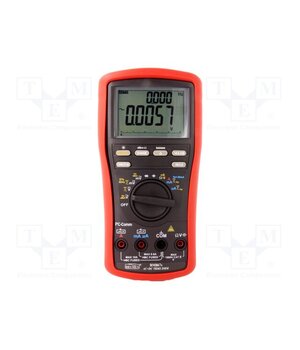

BM867S Digital multimeter; USB; LCD; Bargraph: 41segm.60x/s; 5x/s

• AC current measuring range — 10A
• Capacitance measuring range — 25mF
• DC current measuring range — 10A
• DC voltage measuring range — 1kV DC
• AC voltage measuring range — 1kV AC
• Resistance measuring range — 50MΩ
• Measurement — conductance
• —
• —
• —
• Sampling — 5x/s
• —
• —
• —
• —
• —
• —
• Measurement — capacitance
• —
• Measurement — frequency
• —
• Conform to the norm — CAT IV 1000V
• Measurement — DC current
• Standard equipment — test leads
• Measuring instrument features — indicates incorrect connection of test leads
• Measurement — relative
• —
• —
• Measurement — AC voltage
• —
• —
• —
• —
• —
• —
• —
• —
• —
• —
• Kind of display used — LCD
• Duty cycle factor — 0.1...99.99%
• Measurement — resistance
• Measuring instrument features — auto and manual ranging
• —
• Manufacturer — BRYMEN
• —
• Measurement — dBm
• —
• —
• —
• Continuity test — 20Ω...200Ω
• —
• Measuring instrument features — logging of MAX, MIN, AVG
• —
• Measuring instrument features — HOLD function
• —
• —
• Type of meter — digital multimeter
• —
• —
• Measuring instrument features — automatic power-off
• —
• Frequency measuring range — 10...200kHz
• Conform to the norm — EN 61010
• —
• —
• —
• Interface — USB
• True effective value measurement — True RMS AC
• Standard equipment — holster
• —
• —
• Illumination — yes
• Continuity test — acoustic indication
• —
• —
• —
• Measurement — AC current
• —
• —
• Measurement — DC voltage
• —
• Dimensions (W x H x D) — 103x208x64.5mm
• True effective value measurement — True RMS AC+DC
• —
• —
• —
• —
• Measuring instrument features — CREST: logging of extreme values MAX, MIN and MAX-MIN of voltage and current impulses > 0,8ms
• —
