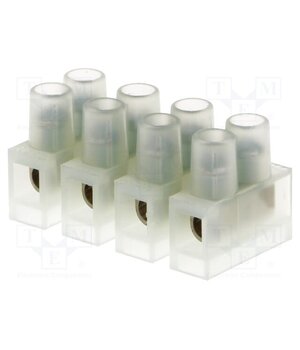

BM 92CS4 Connector: terminal block; 250V; with wire protector; natural

• Rated voltage — 250V
• Operating temperature — 125°C
• Length — 30mm
• Number of terminals — 8
• Manufacturer — BM GROUP
• —
• Conform to the norm — CSA
• Mechanical mounting — for cable
• —
• —
• Mechanical mounting — mounting holes
• Connector variant — with wire protector
• Mechanical mounting — for panel mounting
• —
• —
• —
• Body material — polyamide 66
• —
• Conform to the norm — CE
• Contact plating — nickel plated
• Flammability Rating — UL94V-2
• Conform to the norm — EN
• Contact material — brass
• Wire size — 20AWG...16AWG
• Electrical mounting — screw terminal
• Colour — natural
• —
• —
• —
• Type of connector — terminal block
• Conform to the norm — UL
• —
