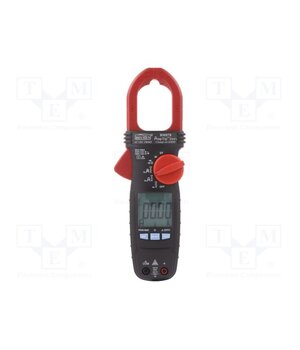

BM078 Meter: multifunction; digital,AC/DC pincers type; Øcable: 35mm

• DC voltage measuring range — 0V DC…600V DC
• AC voltage measuring range — 0V AC…600V AC
• Capacitance measuring range — 2.5mF
• AC current measuring range — 600A
• DC current measuring range — 600A
• Resistance measuring range — 60kΩ
• Max. diameter of measured cable — 35mm
• —
• —
• Sampling — 5x/s
• Frequency measuring range — 5...999.9Hz
• —
• Measurement — capacitance
• —
• —
• Measurement — frequency
• Measurement — DC current
• —
• Continuity test — <10Ω
• Measurement — AC voltage
• —
• —
• True effective value measurement — True RMS
• Measuring instrument features — reading of extreme values
• Kind of display used — LCD
• Measurement — resistance
• —
• —
• Dimensions — 76x37x223mm
• Manufacturer — BRYMEN
• —
• —
• —
• Measuring instrument features — HOLD function
• Measuring instrument features — contactless voltage detector
• —
• —
• —
• —
• Kind of meter — pincers type
• Kind of meter — digital
• Measuring instrument features — CREST: logging of extreme values MAX/MIN
• Type of meter — multifunction
• —
• Continuity test — acoustic indication
• Display parameters — (6000)
• Measuring instrument features — logging of MAX, MIN
• Measurement — AC current
• Conform to the norm — EN 61326-1
• —
• —
• Measurement — DC voltage
• Measuring instrument features — AmpTipTM low-current range
• —
• —
