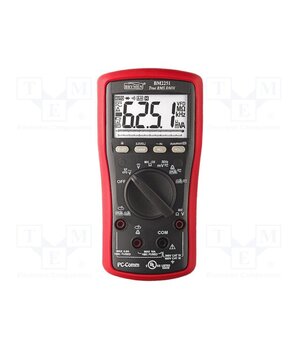

BM2251 Digital multimeter; LCD; (6000); Bargraph: 60segm.40x/s; 5x/s

• AC current measuring range — 10A
• DC current measuring range — 10A
• AC voltage measuring range — 600V AC
• DC voltage measuring range — 600V DC
• Resistance measuring range — 60MΩ
• —
• —
• Conform to the norm — CAT IV 300V
• —
• Sampling — 5x/s
• —
• —
• —
• —
• Measurement — frequency
• Measuring instrument features — Autocheck function - automatic selection LoZ DCV, LoZ ACV, i Ω
• —
• —
• Conform to the norm — CAT III 600V
• Measurement — DC current
• Standard equipment — test leads
• —
• Measuring instrument features — indicates incorrect connection of test leads
• —
• —
• —
• Measurement — AC voltage
• —
• —
• —
• —
• Continuity test — optical indication
• —
• —
• Kind of display used — LCD
• Standard equipment — user's manual
• Measurement — resistance
• —
• Manufacturer — BRYMEN
• —
• Frequency measuring range — 10Hz...200kHz
• Measuring instrument features — MIN/MAX/REL function
• —
• —
• —
• —
• —
• —
• —
• Measuring instrument features — HOLD function
• Measuring instrument features — contactless voltage detector
• —
• Type of meter — digital multimeter
• —
• —
• —
• Dimensions (W x H x D) — 80x161x50mm
• Measuring instrument features — automatic power-off
• Conform to the norm — EN 61010
• —
• —
• Continuity test — 30Ω...480Ω
• —
• —
• True effective value measurement — True RMS AC
• Illumination — yes
• Continuity test — acoustic indication
• —
• —
• —
• Display parameters — (6000)
• —
• Measuring instrument features — logging of MAX, MIN
• Measurement — AC current
• —
• —
• —
• —
• —
• Measurement — DC voltage
• —
• —
• —
• —
• Measuring instrument features — CREST: logging of extreme values MAX, MIN and MAX-MIN of voltage and current impulses > 0,8ms
• —
