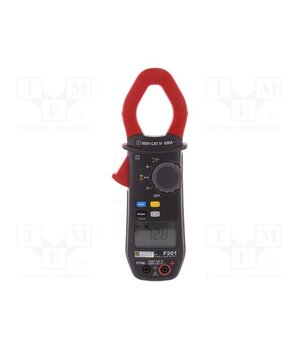

F201 Meter: multifunction; digital,AC pincers type; LCD; (5999)

• Temperature measuring range — -60°C…1k°C
• AC current measuring range — 150mA…600A
• AC voltage measuring range — 150mV AC…1kV AC
• DC voltage measuring range — 150mV DC…1kV DC
• Resistance measuring range — 100mΩ…59.99kΩ
• Max. diameter of measured cable — 34mm
• Standard equipment — case
• Measurement — temperature
• Dimensions — 78x222x42mm
• —
• Measurement — frequency
• —
• Measurement — inrush current
• —
• Standard equipment — test leads
• Frequency measuring range — 5...20kHz
• Measurement — AC voltage
• True effective value measurement — True RMS
• Manufacturer — CHAUVIN ARNOUX
• —
• Kind of display used — LCD
• Measuring instrument features — low battery indicator
• —
• —
• Measurement — resistance
• Measuring instrument features — MIN/MAX function
• Test — diodes
• —
• Measuring instrument features — HOLD function
• —
• Continuity test — 1Ω...599Ω
• —
• Conform to the norm — CAT IV 600V
• Measuring instrument features — automatic power-off
• Conform to the norm — EN 61010
• —
• Standard equipment — drop-like K-type probe
• —
• Kind of meter — pincers type
• —
• Kind of meter — digital
• —
• Conform to the norm — EN 61243-3:2010
• Type of meter — multifunction
• —
• Display parameters — (5999)
• Illumination — yes
• Continuity test — acoustic indication
• Measurement — AC current
• —
• —
• Measuring instrument features — True InRush function
• Measurement — DC voltage
• Measurement — continuity
