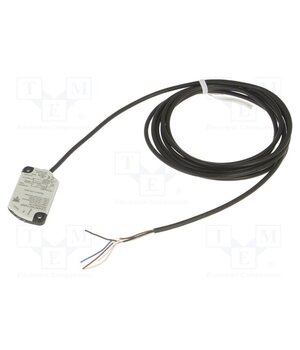

CD46CNC10NP Sensor: capacitive; Range: 1÷10mm; OUT: NPN / NO / NC; 2m; PBT; 0.2A

• Supply voltage — 10V…30V
• Operating temperature — -20°C…80°C
• Supply voltage AC — 10V AC…30V AC
• Supply voltage DC — 10V DC…30V DC
• Maximum current — 200mA
• Lead length — 2m
• Switching frequency max — 10Hz
• —
• Output configuration — NPN / NO / NC
• —
• IP rating — IP68
• Body dimensions — 28x46x5.5mm
• —
• —
• —
• —
• Range — 1...10mm
• Type of sensor — capacitive
• Additional functions — Teach-in
• Manufacturer — CARLO GAVAZZI
• —
• Connection — cables
• Body material — PBT
