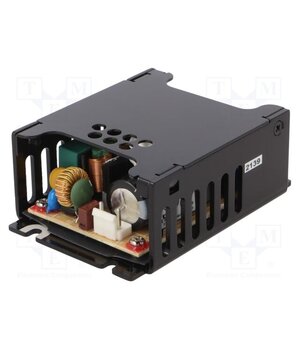

CFM70S480-CA Power supply: switching; open; 70W; 90÷264VAC; OUT: 1; 48VDC; 1.46A

• Power — 70W
• Operating temperature — -30°C…80°C
• Supply voltage AC — 90V AC…264V AC
• Output voltage — 48V
• Output current — 1.46A
• Supply voltage DC — 90V DC…264V DC
• Number of outputs — 1
• Switching frequency — 65kHz
• Efficiency — 91%
• Kind of power supply — open
• —
• Protection — short circuit protection SCP
• Protection — anti-overload OPP
• —
• —
• —
• —
• Power consumption without load — <0.15W
• Body dimensions — 91.4x64x34.5mm
• Insulation voltage — 3kV
• Case — 3"x2"
• Electrical connection — connector with snap lock
• —
• Manufacturer — CINCON
• —
• Type of power supply — switching
• —
• —
