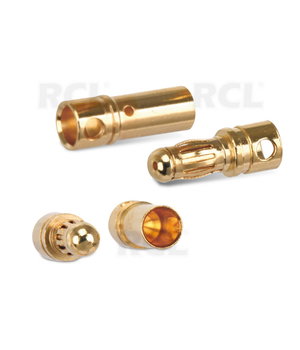

CONNECTOR 3.5mm socket+plug (set), lengths: plug 12.5mm, socket 12.2mm
Code CJ603- Weight 2.00g
E-shop price: 0,90 €
| Amount: | 10+ | 20+ |
| Price: | 0,77 | 0,59 |
| Item location: | ||
|---|---|---|
| Central warehouse in Kaunas | Item available (170) | |
| Shop in Vilnius | Item available (9) | |
| Shop in Kaunas | Item available (7) | |
Description
GOLD 3.5mm connectors are the most popular modern connectors used in modeling, used for connections on power cables. Banana type connectors are a very reliable battery or motor connection with electronic speed control ESC.
It provides a reliable connection, minimal connector resistance, which allows a very high current flow without loss, voltage drop or heat.
The plugs are ideal for simulated operation and power systems used in electronics.
Product Features
Gold-plated high-current contacts.
Easy plugging and unplugging.
Non-flammable material covers.
Soldering is required for proper connection.
Special design allows higher and lower currents and protects against backfeeding.
Technical data
Contact current: 60A
Plug diameter: 3.5 mm
Length: plug: 12.5mm, receptacle: 12.2mm
