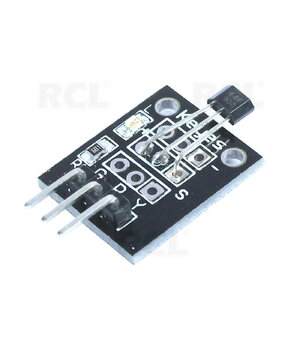

HALL sensor module KY003 - 3144 3pin
Code CJJ0090- Weight 3.00g
E-shop price: 1,80 €
| Amount: | 5+ | 10+ |
| Price: | 1,55 | 1,06 |
Minimum order: 1 Repeatability : 1
Amount
| Item location: | ||
|---|---|---|
| Central warehouse in Kaunas | Item available (2) | |
| Shop in Vilnius | Item available (4) | |
| Shop in Kaunas | Item available (1) | |
Item description
The Hall effect sensor reacts to the change of the magnetic field, so it is possible to count the changes when the magnetic field changes. It is mostly used to calculate engine or wheel speed of ABS system vehicles.
The module with 3144 hall sensor can be used for motor speed measurement, position detection, etc.
Magnetic Speed Counting Sensor Module for Arduino Smart Car.
Technical data:
Power supply: 4.5 - 24V
Output current: 25mA
Current consumption: 4 - 8mA
Response time: from 0.04 to 2 uS
Signal Output Type: Digital: GND / VCC
Output: without magnetic field - 4.6V, with magnetic field - 0.1V
Module dimensions: 19mm x 15mm x 3mm
