CONNECTOR NPP 4pin Male 2.5mm
Code CJK7604- Weight 0.73g
E-shop price: 0,2000 €
| Amount: | 10+ | 25+ | 50+ |
| Price: | 0,1700 | 0,1001 | 0,0890 |
Minimum order: 1 Repeatability : 1
Amount
| Item location: | ||
|---|---|---|
| Central warehouse in Kaunas | Item available (97) | |
| Shop in Vilnius | Item available (18) | |
| Shop in Kaunas | Item available (21) | |
Item description
For wire mounting. Included contacts
Response part : CJL7604
Current limit : 2 A
Voltage limit : 250 V
Breaking voltage : 800 VAC
Contact resistance : <20 mOm
Contact material : tinned bronze
Conductor diameter : 0,0804 - 0,325mm2 (AWG28-22)
Min. Insulation resistance : 1000 MOm
Operating temperature : -25°C to +85°C
Housing material : nylon 6/6
Flammability class : UL94V-0
Step : 2.5 mm

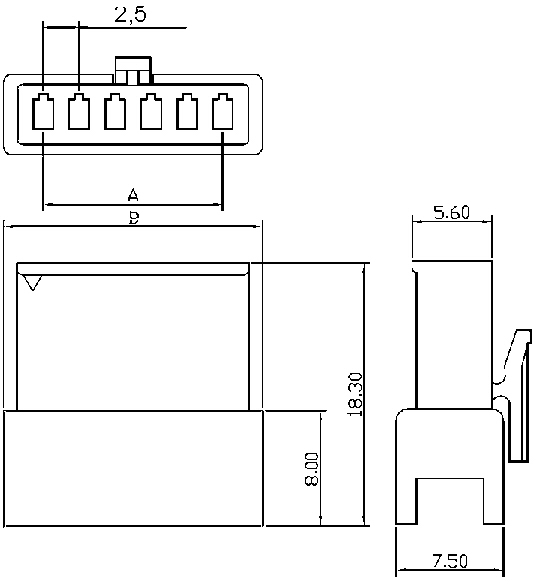

Dimensions : A=7.5 x B=13mm
