CONNECTOR NPP 5pin Male 2.5mm, 2A 250V
Code CJK7605- Weight 0.91g
E-shop price: 0,2500 €
| Amount: | 10+ | 20+ |
| Price: | 0,2150 | 0,1433 |
Minimum order: 1 Repeatability : 1
Amount
Cleanup sale, availible quantity: 49pcs.
Cleanup sale, availible quantity: 49pcs.
| Item location: | ||
|---|---|---|
| Central warehouse in Kaunas | Item available (31) | |
| Shop in Vilnius | Item available (11) | |
| Shop in Kaunas | Item available (7) | |
Description
For wire mounting. Included contacts
Response part : CJL7605
Current limit : 2 A
Voltage limit : 250 V
Breaking voltage : 800 VAC
Contact resistance : <20 mOm
Contact material : tinned bronze
Conductor diameter : 0,0804 - 0,325mm2 (AWG28-22)
Min. Insulation resistance : 1000 MOm
Operating temperature : -25°C to +85°C
Housing material : nylon 6/6
Flammability class : UL94V-0
Step : 2.5mm

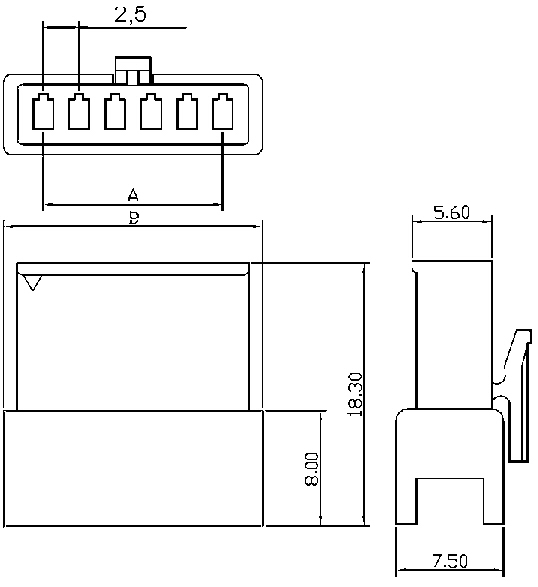

Dimensions : A=10 x B=15.5mm
