CONNECTOR NPP 3pin Female 2.5mm
Code CJL7603- Weight 1.00g
E-shop price: 0,2000 €
| Amount: | 10+ | 20+ |
| Price: | 0,1700 | 0,1153 |
Minimum order: 1 Repeatability : 1
Amount
| Item location: | ||
|---|---|---|
| Central warehouse in Kaunas | Item available (564) | |
| Shop in Vilnius | Item available (52) | |
| Shop in Kaunas | Item available (33) | |
Item description
For wire mounting. Included contacts
Response part : CJK7603
Current limit : 2 A
Voltage limit : 250 V
Breaking voltage : 800 VAC
Contact resistance : <20 mOm
Contact material : tinned bronze
Conductor diameter : 0,0804 - 0,325mm2 (AWG28-22)
Min. Insulation Resistance : 1000 MOm
Operating Temperature : -25°C to +85°C
Housing Material : Nylon 6/6
Flammability Class : UL94V-0

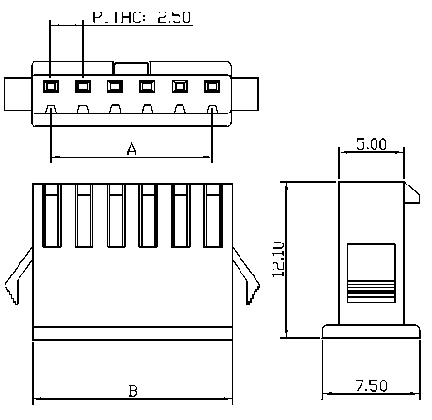

Dimensions : A=5 x B=10.5mm
