CONNECTOR NPP 8pin Female 2.5mm
Code CJL7608- Weight 2.60g
E-shop price: 0,45 €
Minimum order: 1 Repeatability : 1
Amount
Cleanup sale, availible quantity: 7pcs.
Cleanup sale, availible quantity: 7pcs.
| Item location: | ||
|---|---|---|
| Central warehouse in Kaunas | Item is not available (0) | |
| Shop in Vilnius | Item available (6) | |
| Shop in Kaunas | Item available (1) | |
Item description
For wire mounting. Included contacts
Response part : CJK7608
Current limit : 2 A
Voltage limit : 250 V
Breaking voltage : 800 VAC
Contact resistance : <20 mOm
Contact material : tinned bronze
Conductor diameter : 0,0804 - 0,325mm2 (AWG28-22)
Min. Insulation resistance : 1000 MOm
Operating temperature : -25°C to +85°C
Housing material : nylon 6/6
Flammability class : UL94V-0

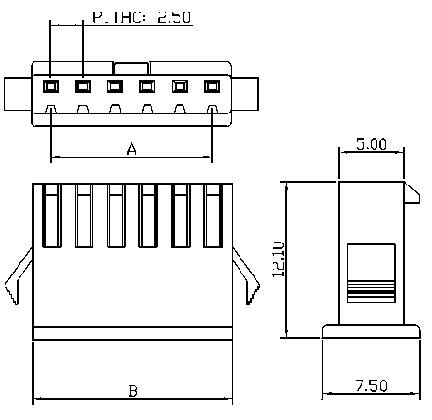

Dimensions : A=17.5 x B=23mm
