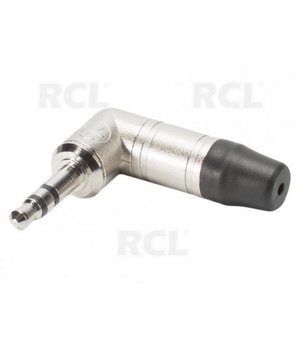

PLUG ø3.5mm stereo metal, NEUTRIK NTP3RC

Code CKI014N/K
  • Manufacturer NEUTRIK
  • ID code NTP3RC
  • Weight 10.00g

E-shop price: 4,57

Amount: 4+ 8+
Price: 4,35 4,17
Minimum order: 1 Repeatability : 1

Amount
Item location:
Central warehouse in Kaunas Item is not available (0)
Shop in Vilnius Item available (1)
Shop in Kaunas Item available (2)

Item description

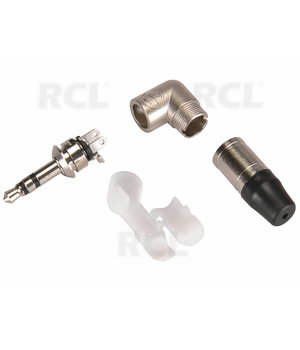

3 pole 3.5 mm audio plug, solder termination, chuck type strain relief, bushing, nickel housing, nickel contacts

The only right-angled metal bodied 3.5 mm jack plug with chuck type strain relief for secure cable retention. It accepts cables from 2.0 to 4.5 mm.

Features & Benefits
All metal housing - robust and reliable
Chuck type cable clamp and rubber gland - excellent cable protection
Slim design - space saving

NTP3RC
Connection Type: Plug
Gender: male
-- Electrical --
Contact resistance: depends on mating connector m?
Dielectric strength: 1 kVdc
Insulation resistance: > 2 G? (initial)
Rated voltage: <50 V
-- Mechanical --
Cable: O.D.2 - 4.5 mm
Wire: size 0,22 mm² / 24 AWG
Wiring: Solder contacts
-- Material --
Bushing: Brass (CuZn39Pb3) + PU, Ni
Contact: plating2 µm Ni (Su)
Contacts: Brass (CuZn39Pb3)
Insert: Polyamide (PA 6.6 15 % GR)
Shell: Zinc diecast (ZnAl4Cu1)
Shell plating: Nickel
Strain relief: Polyacetal (POM)
-- Environmental --
Solderability: Complies with IEC 68-2-20
Temperature range: -20 °C to +65 °C

Specification
