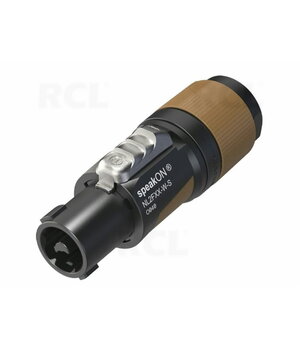

Neutrik NL2FXX-W-S

🔊 Product description

Neutrik NL2FXX-W-S is a professional 2-pole speakON cable connector designed for secure and reliable loudspeaker connections in professional audio systems. This model belongs to the Neutrik FXX series and features a rugged construction, ergonomic housing, and the proven twist lock locking mechanism.

The connector is intended for demanding applications where mechanical durability, stable contact, and long service life are essential. According to the manufacturer, speakON connectors are the industry standard for loudspeaker connections, and this version is designed for cables with an outer diameter of 6 to 12 mm.

The model uses screw-type terminals with stranded wire protection, helping ensure convenient assembly and dependable electrical contact. Its two-component housing improves grip, reduces slipping, and adds better kink protection at the cable exit.

It is important to note that NL2FXX-W-S is not intended for use as an AC mains or power supply connector. It is a dedicated connector for loudspeaker applications only.

✅ Features and benefits

• 🔒 Reliable twist lock locking system
• 🔌 Mates with 2-pole and 4-pole speakON chassis connectors (contacts +1 / -1)
• 🧰 Screw terminals with stranded wire protection
• ✋ Ergonomic, slip-resistant two-component molded housing
• 🛡️ Extremely robust and reliable construction according to Neutrik quality standards
• ⚡ Current rating up to 37 A rms
• 🧷 Unique strain relief system for cable diameters 6–12 mm
• 🧩 Easy assembly thanks to the mechanically interlocking strain relief and insert alignment
• ↪️ Improved kink protection through the two-component bushing
• 📘 Certified to IEC 61984, accepted as a component of equipment according to IEC 62368-1

📐 Technical specifications

General

• Model: NL2FXX-W-S
• Series: speakON, 2-pole
• Type: cable connector

Electrical

• Contact resistance: ≤ 2 mΩ
• Dielectric strength: 2.8 kVac
• Insulation resistance: > 10 GΩ (initial)
• Number of electrical contacts: 2
• Europe rating, IEC 61984: 37 A / 250 V AC
• USA rating, UL1977: 35 A / 250 V AC
• Canada rating, CSA C22.2 No.182.3: 24 A / 250 V AC
• Attention: strictly not intended for use as an AC mains or power supply connector
• Caution: NOT FOR INTERRUPTING CURRENT

Mechanical

• Cable outer diameter: 6–12 mm
• Typical lifetime: 5,000 mating cycles
• Wire size: 1.5–4 mm²
• Wire size (AWG): 17–11 AWG
• Locking device: Twist lock
• Termination: screw-type terminals

Materials

• Contact plating: Ag (silver)
• Contacts: copper alloy
• Insert: polyamide (PA6.6)
• Locking element: zinc diecast
• Shell: polyamide (PA6) / TPE
• Strain relief: polyketone
• Bushing: polypropylene / TPE

Environmental

• Temperature range: -33 °C to +80 °C
• Protection class: IP20
• Flammability according to UL94: V-0

🎯 Applications

Neutrik NL2FXX-W-S is suitable for professional: - concert audio systems, - loudspeaker cable assemblies, - stage and touring equipment, - installed audio systems, - mobile and fixed professional audio connections.

Its rugged build and secure locking system make it especially suitable for environments where resistance to mechanical stress and dependable signal transmission are required.

📦 Summary

Neutrik NL2FXX-W-S is a high-quality professional 2-pole speakON cable connector for loudspeaker use. It combines reliable contact performance, secure locking, broad cable compatibility, and durable construction, making it an excellent choice for professional audio applications. ```
