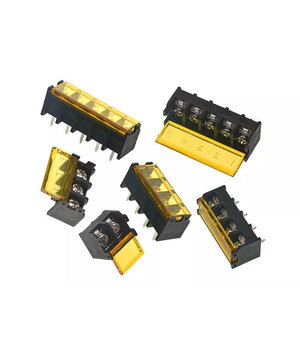

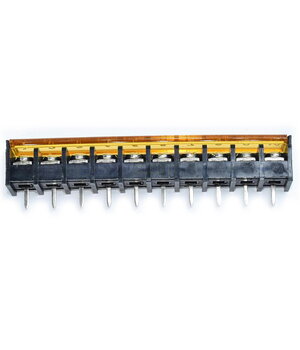

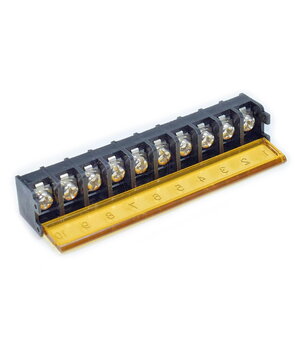

TERMINAL BLOCK HB9500-9.5-10P, 30A / 300V, 2pin 9.5mm
Code CKK006S10- Weight 30.00g
E-shop price: 1,80 €
| Amount: | 5+ | 10+ |
| Price: | 1,58 | 1,43 |
| Item location: | ||
|---|---|---|
| Central warehouse in Kaunas | Item available (10) | |
| Shop in Vilnius | Item available (5) | |
| Shop in Kaunas | Item available (5) | |
Description
Product name: HB9500-9.5-10P
Power supply voltage: 300V AC/DC
Maximum current: 30A
Temperature range: -40°C ...+105°C
Wire range: 0.7...2.4mm2, 12-22 AWG
Connection type: bolted
Protection: with flap cover lid
Material: plastic
Contact material: metal with nickel-coated surface
Functions and use:
Is used as a robust and reliable connector in electronics projects, industrial installations, and anywhere where a stable wiring system is required.
This terminal block is perfectly suited for use in wire-to-board (PCB) connections.
The protective cover helps to ensure safety by preventing accidental contact with the conductors.
Its design allows for easy connection and disconnection of wires, which is useful during testing, prototyping or servicing.
