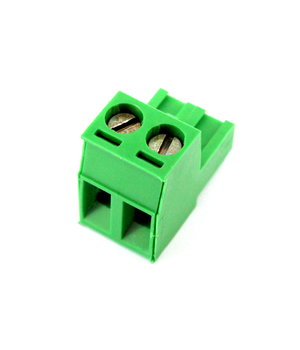

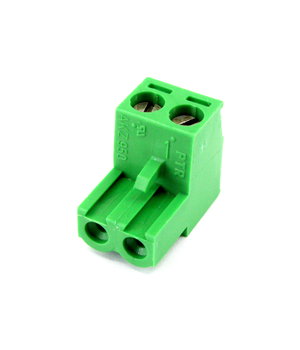

TERMINAL BLOCK 2pin Female for Cable, 5,08mm

Code CKK102L
  • Weight 2.80g

E-shop price: 0,60

Amount: 10+ 50+ 100+
Price: 0,52 0,33 0,30
Minimum order: 1 Repeatability : 1

Amount
Item location:
Central warehouse in Kaunas Item available (193)
Shop in Vilnius Item available (38)
Shop in Kaunas Item available (22)

Item description

Drawing

Contact connector-slot.
Allowable voltage : 300 V
Maximum current : 15 A
Dimensions : Width - 10.16mm , Height - 15.2mm , Depth - 17.7mm
Contact : bronze coated
Housing material : PA66 (UL94V-0)
Breaking voltage : 1500 V AC/1 min.
Operating temperature : from -40°C to +105°C
Soldering : 250°C / 5 sec. max

Specification
