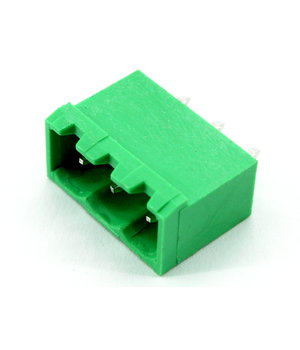

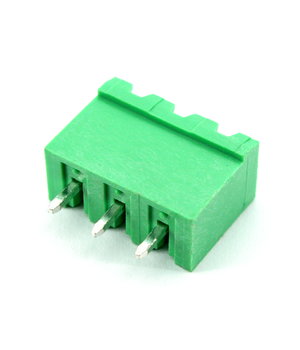

TERMINAL BLOCK 3pin, Male, soldered, cul-de-sac, 5,08mm
Code CKK103/U- Weight 0.80g
E-shop price: 0,2500 €
| Amount: | 10+ | 50+ | 100+ |
| Price: | 0,2150 | 0,1482 | 0,1331 |
Minimum order: 1 Repeatability : 1
Amount
| Item location: | ||
|---|---|---|
| Central warehouse in Kaunas | Item available (106) | |
| Shop in Vilnius | Item available (34) | |
| Shop in Kaunas | Item available (17) | |
Description
Contact connector - plug with side walls.
Allowable voltage : 300 V
Maximum current : 15 A

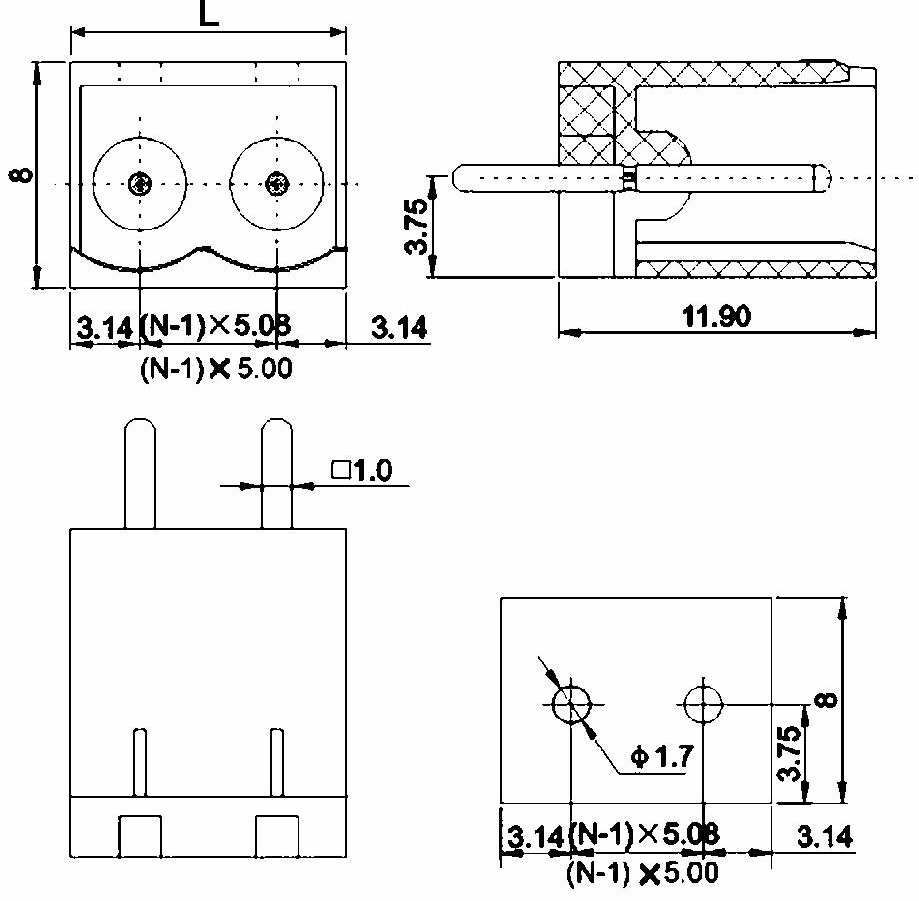

Dimensions : width - 15.24mm , height - 12.3mm , depth - 8mm
Contact : bronze coated
Housing material : PA66 (UL94V-0)
Breaking voltage : 1500 V AC/1 min.
Operating temperature : from -40°C to +105°C
Soldering : 250°C / 5 sec. max
