TERMINAL BLOCK 3pin Male, soldered, closed, 5.08mm
Code CKK103K/U- Weight 1.43g
E-shop price: 0,2500 €
| Amount: | 3+ | 10+ | 50+ | 100+ |
| Price: | 0,2225 | 0,2125 | 0,1716 | 0,1541 |
Minimum order: 1 Repeatability : 1
Amount
| Item location: | ||
|---|---|---|
| Central warehouse in Kaunas | Item available (179) | |
| Shop in Vilnius | Item available (21) | |
| Shop in Kaunas | Item available (15) | |
Item description
Contact plug connector. Outputs angled.
Allowable voltage : 300 V
Maximum current : 15 A

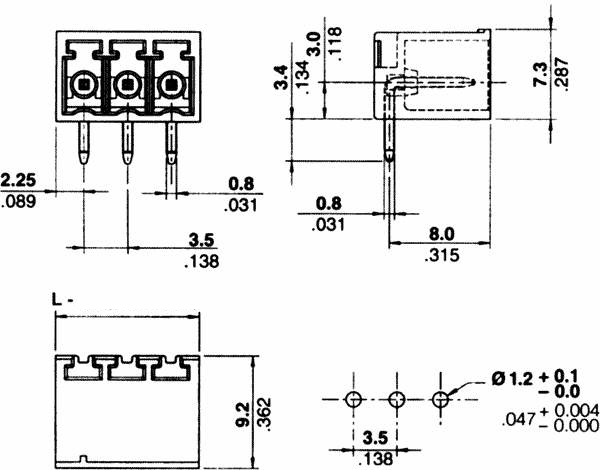

Dimensions : Width - 17.30mm , Height - 7.8mm , Depth -12mm
Contact : bronze coated
Housing material : PA66 (UL94V-0)
Breaking voltage : 1500 V AC/1 min.
Operating temperature : from -40°C to +105°C
Soldering : 250°C / 5 sec. max
