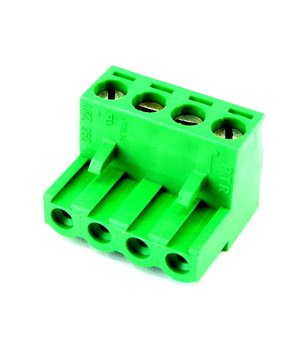

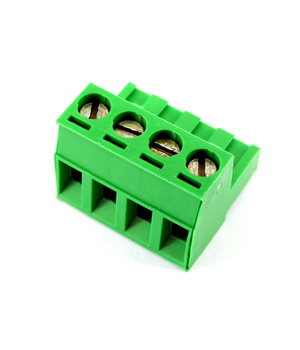

TERMINAL BLOCK 4pin Female, for Cable, 5.08mm
Code CKK104L- Weight 3.50g
E-shop price: 1,00 €
| Amount: | 10+ | 50+ | 100+ |
| Price: | 0,86 | 0,68 | 0,60 |
Minimum order: 1 Repeatability : 1
Amount
| Item location: | ||
|---|---|---|
| Central warehouse in Kaunas | Item available (67) | |
| Shop in Vilnius | Item available (18) | |
| Shop in Kaunas | Item available (19) | |
Description
Contact connector - socket.
Allowable voltage : 300 V
Maximum current : 15 A
Dimensions : width - 20.32mm , height - 15.2 mm , depth - 17.7mm
Contact : bronze coated
Housing material : PA66 (UL94V-0)
Breaking voltage : 1500 V AC/1 min.
Operating temperature : from -40°C to +105°C
Soldering : 250°C / 5 sec. max
