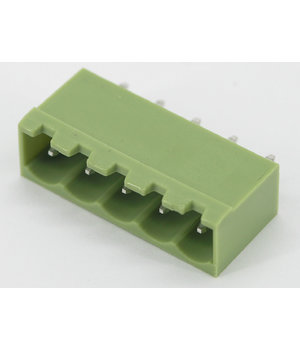

TERMINAL BLOCK 5pin male, 5.08mm

Code CKK105/U
  • Weight 5.00g

E-shop price: 0,35

Amount: 10+ 50+ 100+
Price: 0,30 0,1395 0,1240
Minimum order: 1 Repeatability : 1

Amount
Item location:
Central warehouse in Kaunas Item available (85)
Shop in Vilnius Item available (12)
Shop in Kaunas Item available (13)

Item description

Drawing

Contact plug connector with side walls.
Allowable voltage : 300 V
Maximum current : 15 A
Dimensions : Width - 15.24mm , Height - 12.3mm , Depth - 8mm
Contact : bronze coated
Housing material : PA66 (UL94V-0)
Breaking voltage : 1500 V AC/1 min.
Operating temperature : from -40°C to +105°C
Soldering : 250°C / 5 sec. max

Specification
