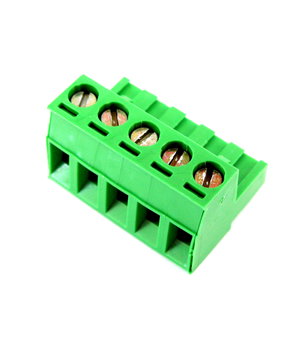

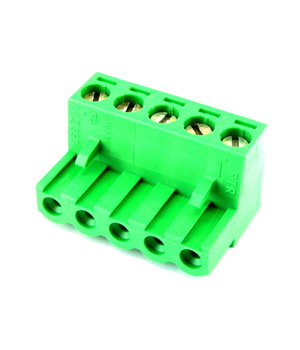

TERMINAL BLOCK 5pin, Female for Cable, 5.08mm

Code CKK105L
  • Weight 6.90g

E-shop price: 1,00

Amount: 10+ 50+ 100+
Price: 0,88 0,74 0,69
Minimum order: 1 Repeatability : 1

Amount
Item location:
Central warehouse in Kaunas Item available (33)
Shop in Vilnius Item available (12)
Shop in Kaunas Item available (15)

Item description

Drawing

Contact connector - slot.
Allowable voltage : 300 V
Maximum current : 15 A
Dimensions : Width - 25.40mm , Height - 15.2mm , Depth - 17.7mm
Contact : bronze coated
Housing material : PA66 (UL94V-0)
Breaking voltage : 1500 V AC/1 min.
Operating temperature : from -40°C to +105°C
Soldering : 250°C / 5 sec. max

Specification
