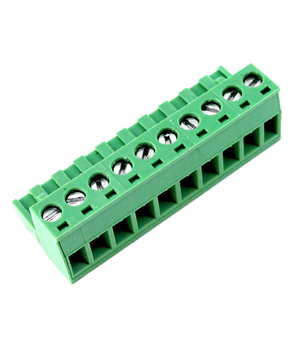

TERMINAL BLOCK 10pin Female, for Cable, 5.08mm
Code CKK110L- Weight 16.00g
E-shop price: 2,00 €
| Amount: | 10+ | 25+ | 50+ |
| Price: | 1,78 | 1,68 | 1,56 |
Minimum order: 1 Repeatability : 1
Amount
| Item location: | ||
|---|---|---|
| Central warehouse in Kaunas | Item available (13) | |
| Shop in Vilnius | Item available (4) | |
| Shop in Kaunas | Item available (6) | |
Item description
Contact connector - slot.
Allowable voltage : 300 V
Maximum current : 15 A
Dimensions : Width - 50.80mm , Height - 15.2mm , Depth - 17.7mm
Contact : bronze coated
Housing material : PA66 (UL94V-0)
Breaking voltage : 1500 V AC/1 min.
Operating temperature : from -40°C to +105°C
Soldering : 250°C / 5 sec. max
