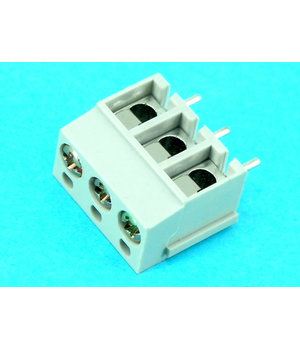

TERMINAL BLOCK 3pin, h=12.5mm, grey
Code CKK35P- Weight 3.00g
E-shop price: 0,2541 €
| Amount: | 10+ | 50+ | 100+ |
| Price: | 0,2261 | 0,2033 | 0,1907 |
Minimum order: 1 Repeatability : 1
Amount
Cleanup sale, availible quantity: 13pcs.
Cleanup sale, availible quantity: 13pcs.
| Item location: | ||
|---|---|---|
| Central warehouse in Kaunas | Item is not available (0) | |
| Shop in Vilnius | Item available (10) | |
| Shop in Kaunas | Item available (3) | |
Description
Contact pad , solderable. Input contact - screw tightening.
Step between contacts : 5.0 mm . Can be clamped together.
Dimensions : 12.5x15x9mm
Contact material : bronze
Housing material : PBT reinforced with glass cloth (UL94 V-0)
Permissible current : 16 A
Operating voltage : up to 300 V
Breakthrough voltage : 1500 V AC/1min.
