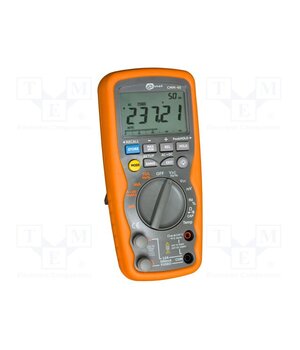

WMGBCMM40 Digital multimeter; LCD; VDC: 0÷1kV; VAC: 0÷1kV; I DC: 0÷10A; 0÷40MΩ

• Temperature measuring range — -50°C…1.2k°C
• Capacitance measuring range — 0F…40mF
• AC current measuring range — 0A…10A
• DC current measuring range — 0A…10A
• AC voltage measuring range — 0V AC…1kV AC
• DC voltage measuring range — 0V DC…1kV DC
• Resistance measuring range — 0Ω…40MΩ
• —
• Manufacturer — SONEL
• —
• Standard equipment — temperature probe
• —
• Measurement — temperature
• Measurement — capacitance
• Measurement — frequency
• Measurement — 4-20mA current loop
• Measurement — DC current
• Standard equipment — test leads
• —
• Measurement — AC voltage
• —
• IP rating — IP67
• True effective value measurement — True RMS
• —
• —
• Standard equipment — thermocouple adapter
• Measuring instrument features — built-in torch
• Kind of display used — LCD
• Measuring instrument features — low battery indicator
• —
• Standard equipment — calibration certificate
• Measurement — resistance
• —
• Measuring instrument features — auto and manual ranging
• Measuring instrument features — compact design
• Measuring instrument features — MIN/MAX function
• Dimensions — 187x81x55mm
• —
• Measuring instrument features — HOLD function
• Type of meter — digital multimeter
• Measuring instrument features — robust structure
• —
• Conform to the norm — CAT IV 600V
• Measuring instrument features — automatic power-off
• —
• —
• Conform to the norm — EN 61010
• —
• —
• Illumination — yes
• Continuity test — acoustic indication
• Measurement — AC current
• —
• —
• Frequency measuring range — 0...100MHz
• Conform to the norm — CAT III 1000V
• Measurement — DC voltage
• Measurement — continuity
