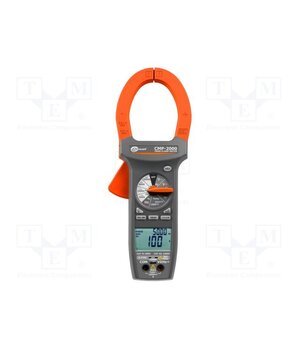

WMGBCMP2000 Meter: multifunction; digital,AC/DC pincers type; Øcable: 57mm

• Capacitance measuring range — 6.599mF
• AC voltage measuring range — 750V AC
• DC voltage measuring range — 1kV DC
• AC current measuring range — 1.5kA
• DC current measuring range — 2kA
• Resistance measuring range — 66MΩ
• Max. diameter of measured cable — 57mm
• —
• —
• Manufacturer — SONEL
• —
• —
• Standard equipment — case
• Measurement — temperature
• Measurement — capacitance
• Measurement — frequency
• —
• Measuring instrument features — pocket size
• Measurement — inrush current
• Measurement — DC current
• Standard equipment — test leads
• —
• —
• Measuring instrument features — MAX function
• Measurement — AC voltage
• —
• —
• —
• —
• —
• —
• —
• —
• Frequency measuring range — 65.99kHz
• —
• Frequency measuring range — 659.9kHz
• —
• —
• Frequency measuring range — 1MHz
• IP rating — IP20
• —
• Kind of display used — LCD
• Frequency measuring range — 65.99Hz
• Standard equipment — calibration certificate
• Measurement — resistance
• —
• Continuity test — <30Ω
• —
• —
• Test — diodes
• —
• Measuring instrument features — HOLD function
• Measuring instrument features — InRush function
• —
• —
• Conform to the norm — CAT IV 600V
• —
• —
• Measuring instrument features — automatic power-off
• —
• Conform to the norm — EN 61010
• Standard equipment — drop-like K-type probe
• Measuring instrument features — reinforced enclosure
• —
• Kind of meter — pincers type
• Body dimensions — 281x108x53mm
• —
• —
• Kind of meter — digital
• Frequency measuring range — 659.9Hz
• —
• Frequency measuring range — 6.599kHz
• Type of meter — multifunction
• —
• Illumination — yes
• Display parameters — (6000)
• Measurement — AC current
• —
• Conform to the norm — CAT III 1000V
• Measurement — DC voltage
• True effective value measurement — True RMS AC+DC
• —
• —
• —
• —
