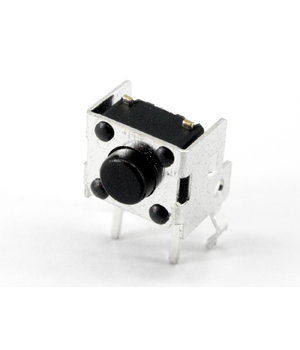

MICROSWITCH OFF-(ON) 50mA / 12VDC square, right-angled, L=3.8mm
Code CPR045- Weight 0.40g
E-shop price: 0,1500 €
| Amount: | 10+ | 25+ | 50+ | 100+ |
| Price: | 0,1275 | 0,0789 | 0,0701 | 0,0520 |
Minimum order: 1 Repeatability : 1
Amount
| Item location: | ||
|---|---|---|
| Central warehouse in Kaunas | Item available (16) | |
| Shop in Vilnius | Item available (12) | |
| Shop in Kaunas | Item available (15) | |
Item description
Contacts configuration: SPST-NO
Operating Force: 1N

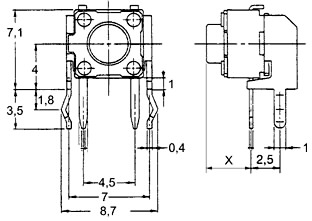

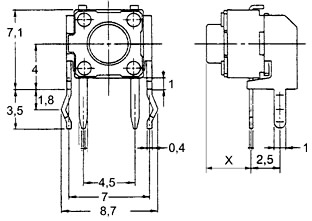

Body dimensions: 6x6mm
Terminal pitch: 2.5x4.5mm
Operating temperature: -25...70°C
Button shape: round
Leads: angled, for PCB
L dimension: 3.8mm
Switches features: with ground terminal
