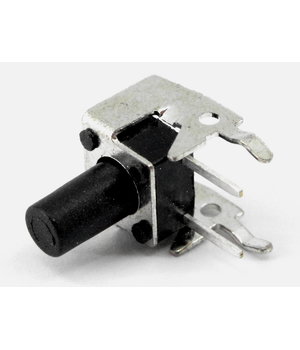

MICROSWITCH OFF-(ON) 50mA / 12VDC square L=9.5mm
Code CPR049- Weight 0.50g
E-shop price: 0,2000 €
| Amount: | 5+ | 10+ |
| Price: | 0,1700 | 0,0921 |
Minimum order: 1 Repeatability : 1
Amount
| Item location: | ||
|---|---|---|
| Central warehouse in Kaunas | Item available (83) | |
| Shop in Vilnius | Item available (32) | |
| Shop in Kaunas | Item available (20) | |
Item description
Contacts configuration: SPST-NO
Operating Force: 1N

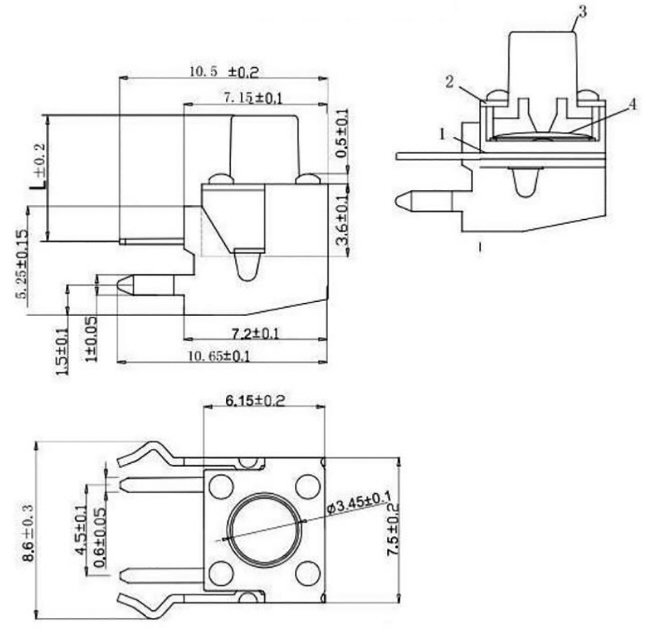

Body dimensions: 6x6mm
Terminal pitch: 2.5x4.5mm
Operating temperature: -25...70°C
Button shape: round
Leads: angled, for PCB
L dimension: 9.5mm
Switches features: with ground terminal
