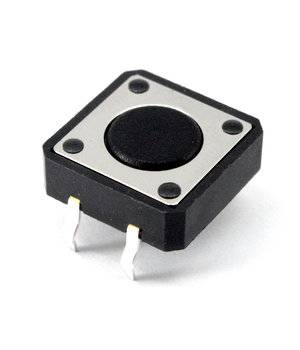

MICROSWITCH OFF-(ON) 50mA / 12VDC square 12x12mm, h=4.3mm
Code CPR070- Weight 10.00g
E-shop price: 0,2500 €
| Amount: | 25+ | 50+ | 100+ |
| Price: | 0,2125 | 0,0627 | 0,0558 |
Minimum order: 1 Repeatability : 1
Amount
| Item location: | ||
|---|---|---|
| Central warehouse in Kaunas | Item available (140) | |
| Shop in Vilnius | Item available (6) | |
| Shop in Kaunas | Item available (18) | |
Description
Contacts configuration: SPST-NO
Operating Force: 1.27N
Body dimensions: 12x12mm
Button height from PCB: 4.3mm
Terminal pitch: 5x12.5mm
Operating temperature: -25...70°C
Button shape: round
Leads: for PCB, straight
Max. contact resistance: 50mΩ
Min. insulation resistance: 100MΩ
Soldering temperature: 250°C
