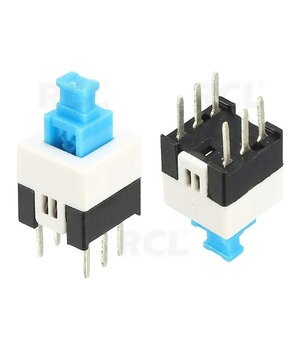

PUSH BUTTON SWITCH ON-(OFF) 0.1A / 30VDC 7x7mm l=2x3mm
Code CPR095- Weight 1.00g
E-shop price: 0,35 €
| Amount: | 10+ | 25+ |
| Price: | 0,30 | 0,1418 |
Minimum order: 1 Repeatability : 1
Amount
| Item location: | ||
|---|---|---|
| Central warehouse in Kaunas | Item is not available (0) | |
| Shop in Vilnius | Item available (10) | |
| Shop in Kaunas | Item available (4) | |
Description

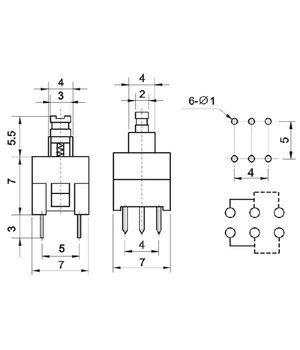

6 Pin configuration design
Insulation Resistance: ≥100MΩ
Dielectric Strength: AC250V 50Hz /min
Contact Resistance: ≤50MΩ
Operating Temperature: -25℃~ + 65℃
Lifetime: 100000 Cycles
Operating Force: 160 ± 80gf
