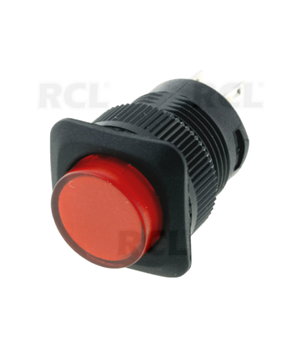

PUSH BUTTON OFF-(ON), 1.5A / 250VAC, 18mm, red round
Code CPR157- Manufacturer SCI
- ID code R13-508A-05-BR
- Weight 3.00g
E-shop price: 1,90 €
| Amount: | 5+ | 10+ |
| Price: | 1,73 | 1,64 |
Minimum order: 1 Repeatability : 1
Amount
Cleanup sale, availible quantity: 1pcs.
Cleanup sale, availible quantity: 1pcs.
| Item location: | ||
|---|---|---|
| Central warehouse in Kaunas | Item is not available (0) | |
| Shop in Vilnius | Item is not available (0) | |
| Shop in Kaunas | Item available (1) | |
Description
Contacts configuration SPST-NO
Actuator colour red
Backlight colour red
Illumination LED 12V DC
Leads for soldering
Operating temperature -25...70°C
Mounting hole diameter Ø16mm
Mounting on panel
Max. contact resistance: 50mOm
Panel thickness max 7mm
Body material polyamide
Body dimensions Ø17.5 x 18mm
Flammability rating UL94HB
Terminals plating silver plated
AC test voltage 1.5kV
