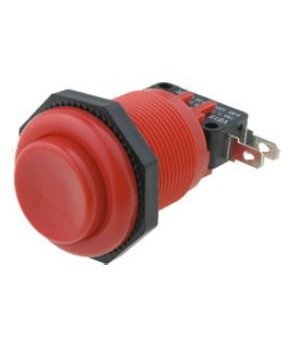

PUSH BUTTON SWITCH 10A / 250VAC, red, R=28mm
Code CPR178R- Manufacturer HIGHLY
- ID code VAQ-7R-15-1C2-1
- Weight 24.00g
E-shop price: 2,50 €
| Amount: | 3+ | 5+ |
| Price: | 2,27 | 1,97 |
Minimum order: 1 Repeatability : 1
Amount
| Item location: | ||
|---|---|---|
| Central warehouse in Kaunas | Item is not available (0) | |
| Shop in Vilnius | Item available (1) | |
| Shop in Kaunas | Item available (2) | |
Item description
Stable positions number 1-position
Contacts configuration SPDT
Leads 6.3x0.8mm connectors
Operating temperature -25...70°C
Mounting on panel
Mounting hole diameter Ø28.6mm
Electrical life 100000cycles
Mechanical durability 1000000cycles
Diameter 23.6mm
