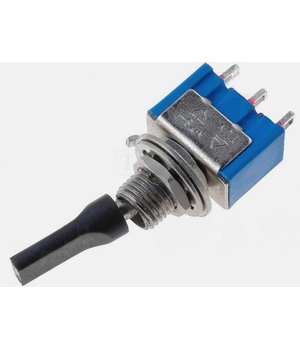

TOGGLE SWITCH 3A 250V, 6a 125VAC, 3pin, ON-ON
Code CPR212MJ- Weight 5.50g
E-shop price: 1,50 €
| Amount: | 5+ | 10+ |
| Price: | 1,34 | 1,26 |
Minimum order: 1 Repeatability : 1
Amount
Cleanup sale, availible quantity: 4pcs.
Cleanup sale, availible quantity: 4pcs.
| Item location: | ||
|---|---|---|
| Central warehouse in Kaunas | Item is not available (0) | |
| Shop in Vilnius | Item available (4) | |
| Shop in Kaunas | Item is not available (0) | |
Item description
Contacts configuration: SPDT
Leads: for soldering
Operating temperature: -25...85°C
Kind of toggle: flat
Mounting hole diameter: Ø6mm
Knob height: 13.5mm
Max. contact resistance: 20mΩ
Body dimensions: 13.2x7.9x9.5mm
Electrical life: 20000 cycles
Actuator material: plastic
Soldering temperature: 260°C / 4 s
