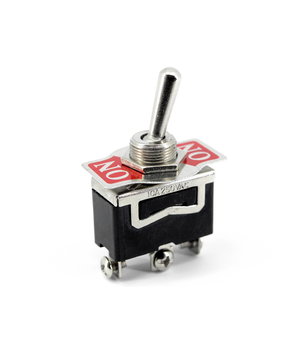

TOGGLE SWITCH  6A 250V, 10A 125VAC, 3pin, ON-ON CPR262.jpg

TOGGLE SWITCH 6A 250V, 10A 125VAC, 3pin, ON-ON

Code CPR262
  • Weight 25.00g

E-shop price: 2,60

Amount: 5+ 10+ 25+
Price: 2,26 1,46 1,29
Minimum order: 1 Repeatability : 1

Amount
Item location:
Central warehouse in Kaunas Item available (34)
Shop in Vilnius Item available (17)
Shop in Kaunas Item available (11)

Item description

Drawing

Max. contact resistance : <50 mOm
Durability : >20,000 cycles
Operating temperature : -55°C to +65°C
Housing dimensions : 33.5x13x19mm
Knob length : 17.5mm
Output : M3 screws
Mounting hole : 12.2mm
Connection positions : 1 pair of ON-ON pins

Specification
