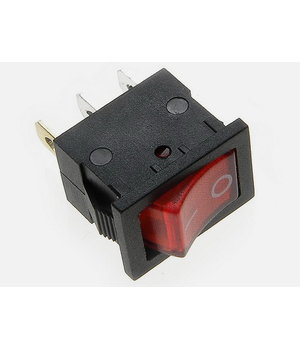

ROCKER SWITCH 6A / 230V, 10A / 125VAC, with illuminated, red, ON-ON
Code CPR424R- Weight 4.80g
E-shop price: 1,20 €
| Amount: | 5+ | 10+ | 25+ |
| Price: | 1,02 | 0,52 | 0,45 |
| 0,72 | 0,63 |
Minimum order: 1 Repeatability : 1
Amount
| Item location: | ||
|---|---|---|
| Central warehouse in Kaunas | Item is not available (0) | |
| Shop in Vilnius | Item available (5) | |
| Shop in Kaunas | Item available (8) | |
Description
Contacts configuration: SPST
Illumination: neon lamp
Max. contact resistance: 35mΩ
Body colour: black
Operating temperature: -30...80°C
Leads: 4,8x0,8mm connectors
Electrical life: 10000 cycles

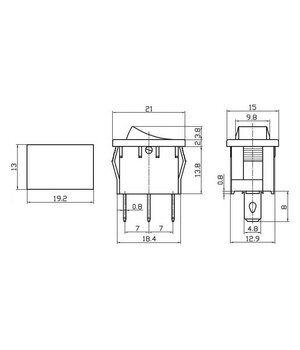

Mounting hole diameteR: 19.2x13mm
Button marking: I-O
Backlight colour: red
Body dimensions: 18.8x12.9x14.4mm
Height above panel: 5.8mm
