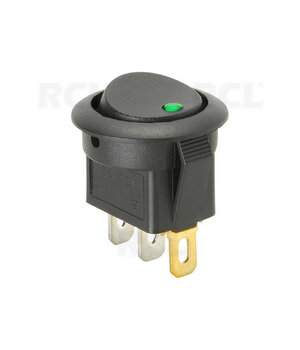

ROCKER SWITCH ON-OFF 12V DC 20A, with green dot indication / ø20mm
Code CPR432Z- Weight 5.00g
E-shop price: 1,30 €
| Amount: | 5+ | 10+ | 25+ |
| Price: | 1,10 | 0,64 | 0,56 |
Minimum order: 1 Repeatability : 1
Amount
| Item location: | ||
|---|---|---|
| Central warehouse in Kaunas | Item is not available (0) | |
| Shop in Vilnius | Item is not available (0) | |
| Shop in Kaunas | Item is not available (0) | |
Description
🔘 12V 20A Round key switch with backlight
📦 Features
* Two positions: ON/OFF
* With LED indicator that lights up when the switch is ON

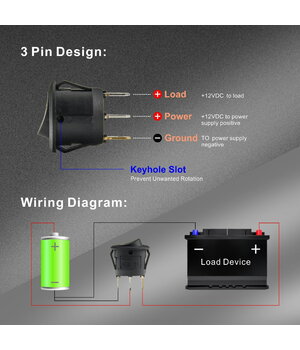

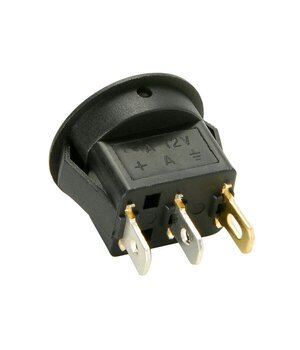

* 3 contacts (2 switches, 1 LED)
* Panel mounting
⚙️ Technical parameters
* Number of contacts: 3 (SPST with LED)
* Switch type: ON-OFF (double pole)
* Shape: Round
* Colour: Black body, green lens
* Mounting hole: ∅20 mm
* Material: Plastic + metal
📏 Dimensions
* Diameter: ~23 mm (outer)
* Height: ~25 mm
* Depth (with pins): ~ 30 mm
🛠️ CustomizationSuitable for:
- Automotive 🚗
- Motorcycles 🏍️
- Boats 🚤
- Home electronics projects 🏠
⚠️ Notes* Proper insulation of the contacts must be ensured * Check current and voltage compatibility before use
✅ The reliable choice for your 12V systems!
